1. What Are Electromagnetic Effects? Electromagnetic effects refer to the interaction between electric current and magnetic fields. Two fundamental laws—Ampere's Right-Hand Rule and Fleming’s Left-Hand and Right-Hand Rules—help describe the relationships between current, magnetic fields, and the forces acting on conductors within a magnetic field.
Electromagnetic effects play a crucial role in the operation of transformers. Transformers are essential devices in power systems that regulate voltage and transmit electrical energy, relying on the interaction between electric current and magnetic fields. According to Ampere’s Right-Hand Rule, current flowing through a conductor generates a magnetic field, which in turn influences other currents, leading to inductive effects.
Additionally, Fleming’s Right-Hand Rule and Left-Hand Rule help determine the direction of induced electromotive force (EMF) and the force acting on a current-carrying conductor in a magnetic field, respectively. These principles are essential for understanding transformer operation, optimizing design, improving efficiency, and ensuring the stability of power systems.

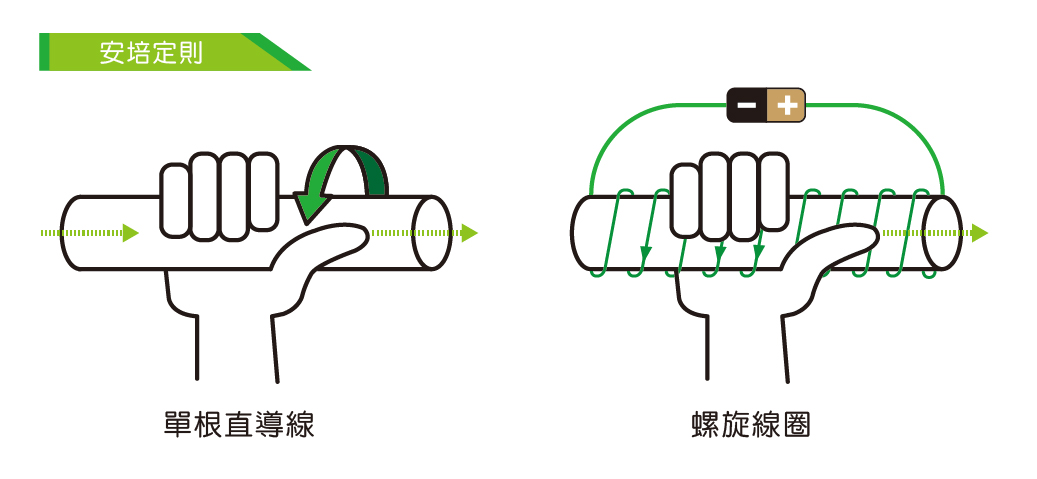

2.Ampere’s Right-Hand Rule Ampere’s Right-Hand Rule describes the relationship between an electric current and the direction of its surrounding magnetic field. If you grasp a conductor with your right hand, with your thumb pointing in the direction of the current, your curled fingers will indicate the direction of the surrounding magnetic field lines.
This rule applies in two key cases:
1.Straight Conductors – For a straight conductor, Ampere’s Right-Hand Rule determines the circular direction of the surrounding magnetic field. The magnetic field forms concentric circles around the wire, creating a circular magnetic field. 2.Solenoids (Coiled Conductors)– For a solenoid (a coiled conductor), if you curl your fingers in the direction of the coil's winding, your thumb will point in the direction of the magnetic field inside the coil. This principle helps in understanding the working principles of electromagnets and inductors.

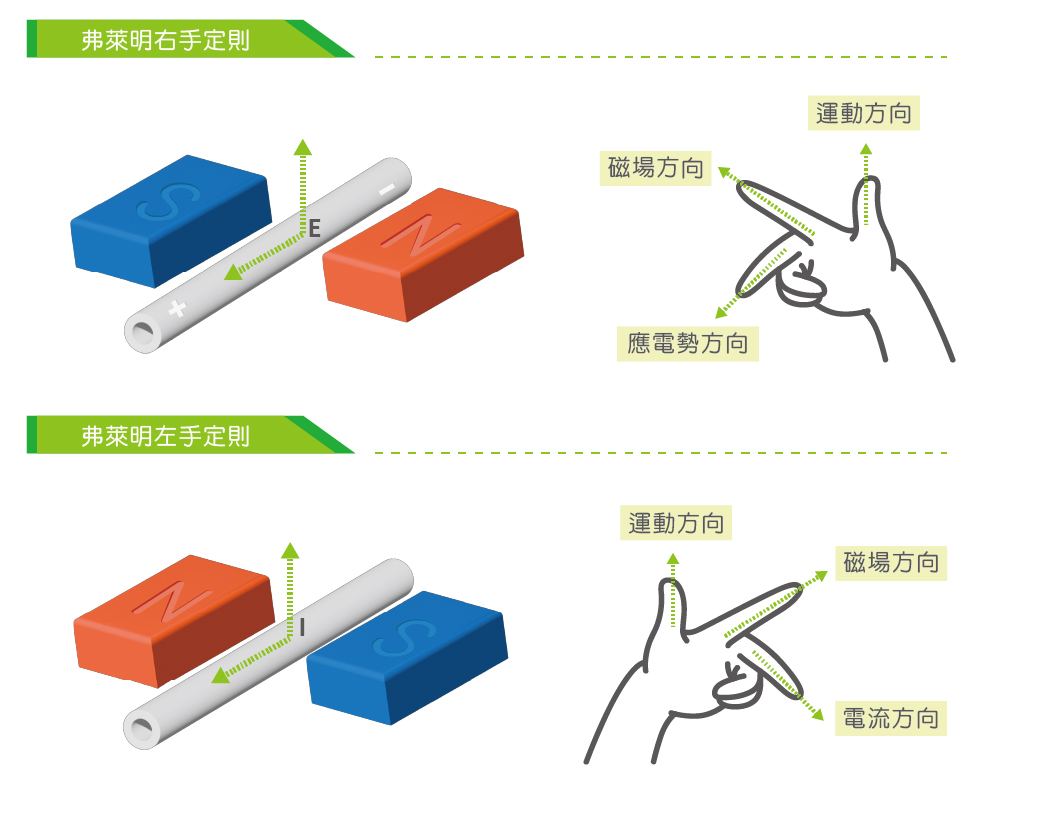

3.Fleming’s Left-Hand and Right-Hand Rules Fleming’s rules describe the interaction between electric current, magnetic fields, and motion (or force).
• Fleming’s Left-Hand Rule (for motors)
This rule is used to determine the direction of force acting on a current-carrying conductor in a magnetic field, which is crucial for motor operation.
Application method :

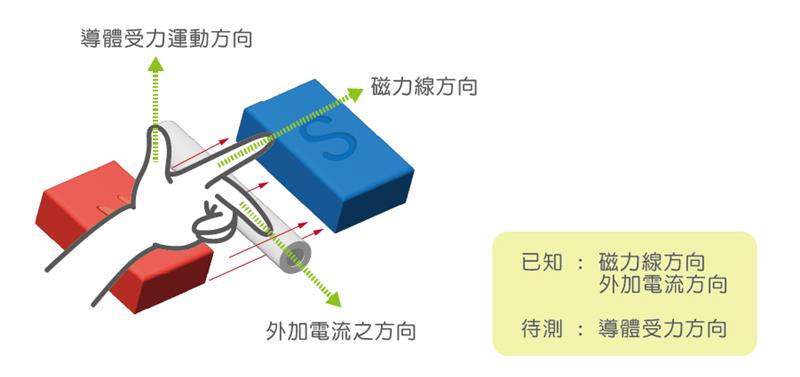

1. Extend the thumb, index finger, and middle finger of the left hand so they are mutually perpendicular (forming an “L” shape).
2. The index finger represents the direction of the magnetic field (from north to south).
3. The middle finger represents the direction of the electric current (conventional current flow, from positive to negative).
4. The thumb represents the direction of the force (motion) exerted on the conductor.
• Fleming’s Right-Hand Rule (for generators)
This rule is used to determine the direction of the induced current when a conductor moves through a magnetic field, which is fundamental in generator operation.
Application method:
1. Extend the thumb, index finger, and middle finger of the right hand so they are mutually perpendicular (forming an “L” shape).
2.The index finger represents the direction of the magnetic field (from north to south).
3.The thumb represents the direction of motion (movement of the conductor cutting through the magnetic field).
4.The middle finger represents the direction of the induced current (determined by the induced EMF).
These two rules are critical in electrical engineering, as they define the principles behind motors (Left-Hand Rule) and generators (Right-Hand Rule), helping engineers determine the interactions between current, magnetic fields, and motion.
These fundamental laws provide a straightforward way to analyze the interactions between current, magnetic fields, and force (or motion), making them essential for understanding electromagnetic phenomena and designing electrical systems.
For example:
• Using Fleming’s Left-Hand Rule, when a conductor carrying current is placed in a magnetic field, the direction of the force acting on the conductor can be predicted. This is essential for motor design and analysis.
• Using Fleming’s Right-Hand Rule, when a conductor moves through a magnetic field and cuts magnetic flux lines, the direction of the induced EMF or current can be determined. This principle guides the operation of generators.
