【GSTH Series】Molded Inductors – Enhancing Stability and Efficiency for Servers and Consumer Electronics
GOTREND GSTH Series molded inductors feature ultra-low DC resistance and high saturation current, delivering exceptional current-handling performance to meet the demands of high-speed computing and high-efficiency applications. They are ideal not only for high-performance servers but also for improving the stability and efficiency of consumer electronics. Our advanced molded inductor technology optimizes product design, achieving a more compact form factor and superior reliability, making it the optimal choice for next-generation inductor applications. Manufactured through automated production processes, we ensure consistent quality and efficient delivery. Choose GOTREND – the smarter choice for efficient and reliable power solutions!
Feature

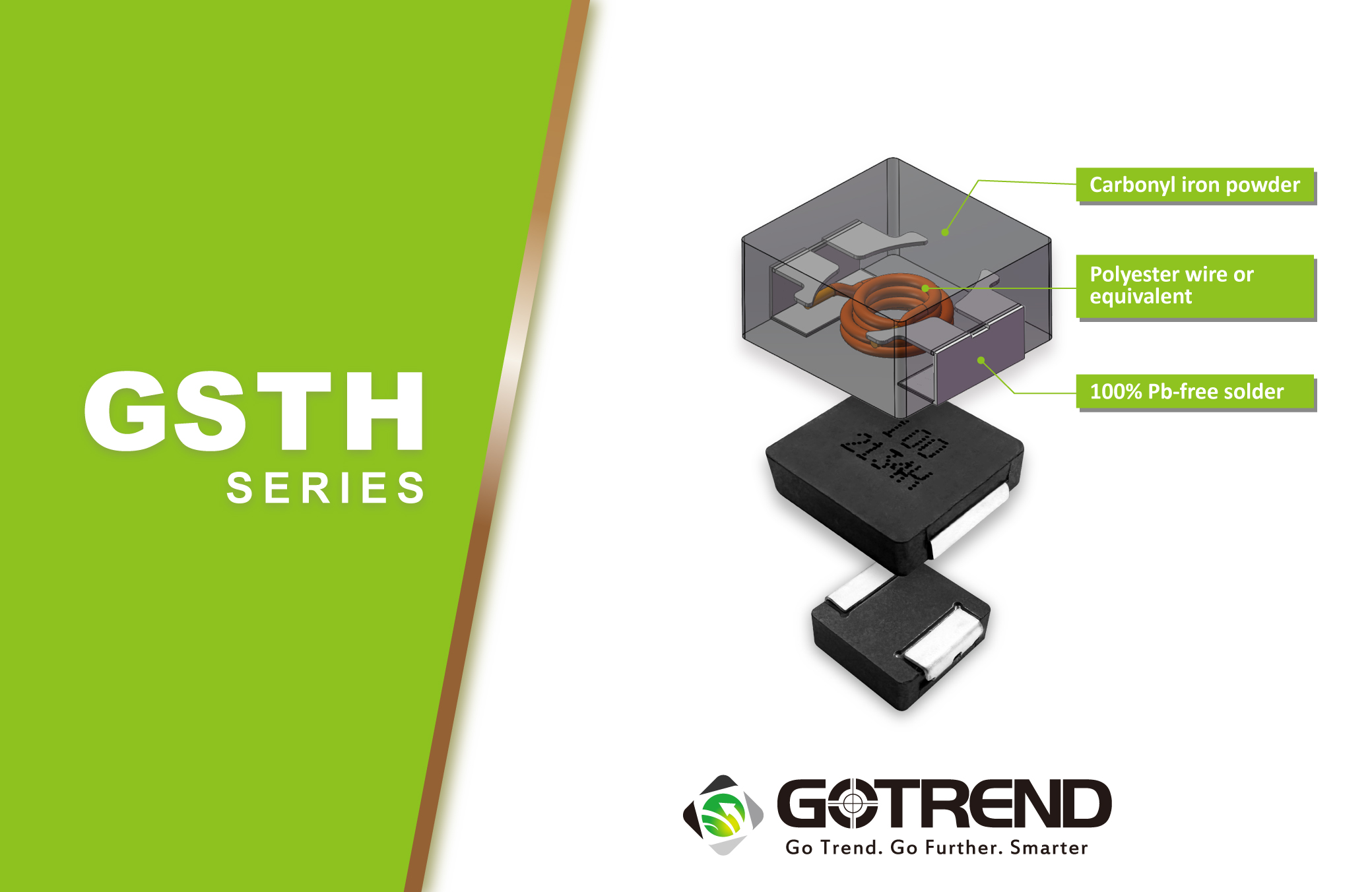

- Materials : Made from high-quality carbonyl iron powder, delivering superior performance in DC resistance (DCR), saturation current (Isat), and RMS current (Irms) compared to competitors.
- Process : Advanced molded construction for superior reliability and robustness.
- Sturdy Structure : Magnetic shielding design ensures durability and high reliability, making it suitable for SMD (Surface-Mount Device) applications.
- Dimensions : 4.2 x 4.1 x 1.9 mm to 5.7 x 5.3 x 2.8 mm.
- Electrical Performance : Ultra-low DC resistance enables higher saturation current and ripple current handling.
- Test Frequency : 1 kHz to 3 MHz.
- Operating Temperature : -40°C to +125°C.
- Reliability Strength : Passes ten major reliability tests.
Advantage
- Quality : Passes ten reliability tests.
- Price : Offers better cost-performance ratio, with superior QCDS compared to competitors.
- Delivery：Regular orders 4–8 weeks, non-regular orders 8–12 weeks.
- Service : Manufactured in China, with inventory on both sides of the Taiwan Strait, and fast global logistics for both domestic and international shipments.
Application
- PC Power Systems / DC-DC Converters
- IMVP-6 / PDA / Laptops / Desktop Computers
- Application Servers
Application circuit diagram
Dimensional Electrical Specification Comparison Table
|
序号 |
產品料號 |
GOTREND ( GSTH系列 ) |
CHXLISIN ( BMMA 系列 ) |
||||||
|
L ( uH ) |
DCR ( mΩ ) ( Typ. ) |
Isat ( A ) ( Typ. ) |
Irms ( A ) ( Typ. ) |
L ( uH ) |
DCR ( mΩ ) ( Typ. ) |
Isat ( A ) ( Typ. ) |
Irms ( A ) ( Typ. ) |
||
|
1 |
GSTH4021PL-R47M |
0.47 |
6.0 |
11.0 |
13.0 |
0.47 |
14.0 |
9.5 |
7.0 |
|
2 |
GSTH4021PL-1R0M |
1.00 |
9.5 |
8.0 |
10.0 |
1.00 |
27.0 |
7.0 |
4.5 |
|
3 |
GSTH4021PL-3R3M |
3.30 |
38.0 |
5.0 |
5.6 |
3.30 |
87.0 |
4.0 |
2.5 |
|
4 |
GSTH4021PL-4R7M |
4.70 |
54.0 |
4.2 |
4.5 |
4.70 |
126.0 |
3.0 |
2.2 |
