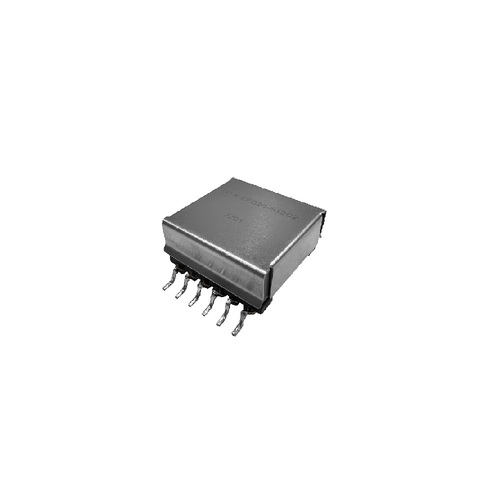

Forward Transformer EFD

Process characteristics : elliptical column, thin type, open core, large magnetic leakage, general permeability. Winding stress is general, high flow resistance, general pressure resistance.

Feature

• 4.75-85 VDC input voltage
• Secondary voltages of 5, 12, 15 and 24V
• frequency 40-500kHz
• Operating Temperature : -40°C to +125°C
• Isolation voltage : Up to 2000VAC

Application

• Sensor interfaces
• Power over Ethernet (POE)
• White goods
• Industrial control
• Industrial & medical power supplies
• Isolated auxiliary/housekeeping power supplies
• Isolated DC/DC supplies
• Home automation
• Telecom

Size

EFD10、EFD15、*EFD20、*EFD25 (*H )( *DIP、*SMD)
