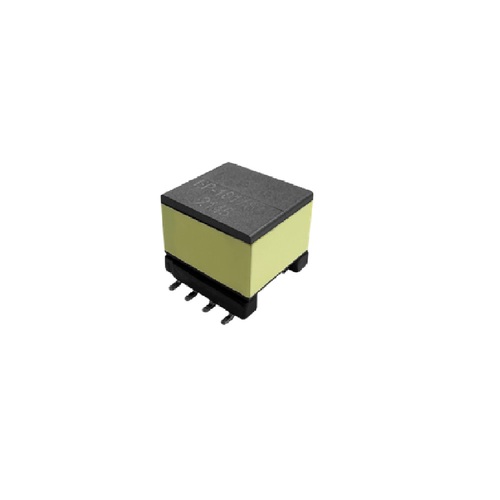

Forward Transformer EP

Process characteristics : cylindrical, boxy, semi-open core, general magnetic leakage, good permeability. Winding stress is general, high flow resistance, general pressure resistance.

Feature

• 4.75-85 VDC input voltage
• Secondary voltages of 3.3,5, 12, 15 and 24V
• frequency 40-500kHz
• Operating Temperature : -40°C to +125°C
• Isolation voltage : Up to 2000VAC

Application

• Industrial & medical power supplies
• Isolated auxiliary / housekeeping power supplies
• Home automation
• Telecom
• Half-Bridge Transformers
• Portable instrumentation
• Field transmitters and other sensors
• Power over Ethernet

Size

EP06、*EP07、EP10、*EP13、EP17(* H )( DIP、*SMD)
