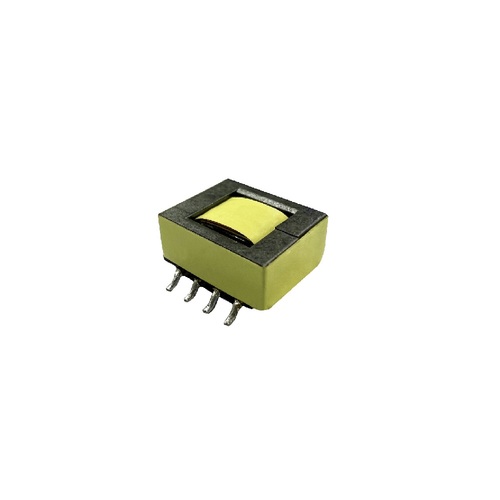

Forward Transformer EPC

Process characteristics : elliptical column, thin type, open core, large magnetic leakage, general permeability. Winding stress is general, high flow resistance, general pressure resistance.

Feature

• 5-15 VDC input voltage
• Secondary voltages of 5V
• frequency 40-250kHz
• Operating Temperature :  -40°C to +125°C
• Isolation voltage : Up to 1500VAC

Application

• Industrial power supplies
• Wireless chargers
• Power over Ethernet (POE)

Size

EPC13、EPC17、EPC19 (* H、*V )( *DIP、*SMD)
