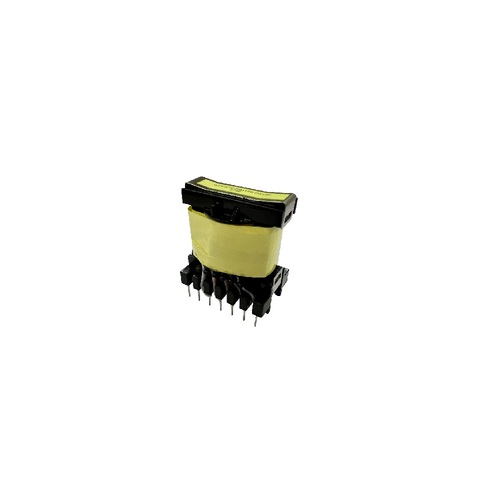

Forward Transformer ETD

Process characteristics : cylindrical, large wattage high flat type, open core, large magnetic leakage, general permeability. Winding stress is general, high flow resistance, high pressure resistance.

Feature

• 20-60 VDC input voltage
• Secondary voltages of 15、25Vand 300V
• frequency 40-500kHz
• Operating Temperature : -40°C to +125°C
• Isolation voltage : Up to 3000VAC

Application

• Industrial and medical power supplies
• Auxiliary power supplies
• Home automation
• Isolated DC/DC power supplies
• Full-Bridge Transformers
• Energy storage system

Size

*ETD29、ETD34、ETD39、EFD59 (* H、*V )( *DIP)
