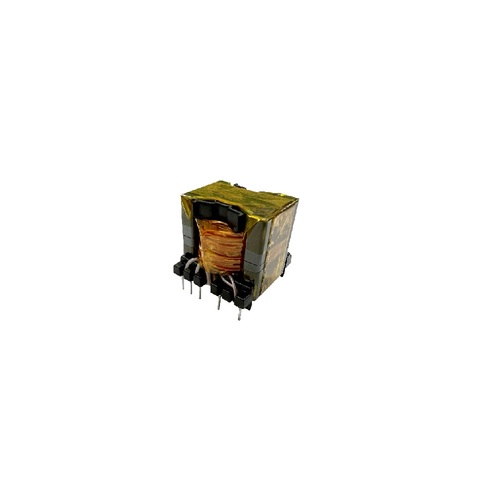

Forward Transformer PQ

Process characteristics : cylindrical, rectangular, semi-open iron core, general magnetic leakage, good permeability. Winding stress is general, high flow resistance, high pressure resistance.

Feature

• 3-60 VDC input voltage
• Secondary voltages of 5, 18, 25, and 300V
• frequency 40-500kHz
• Operating Temperature :  -40°C to +125°C
• Isolation voltage : Up to 3000VAC

Application

• Lighting
• Isolated DC/DC supplies
• Industrial & medical power supplies
• White Goods
• PFC
• Switching power

Size

PQ20、PQ25、PQ26、*PQ28、*PQ32、PQ35、PQ38、PQ40 (*V )( *DIP)
