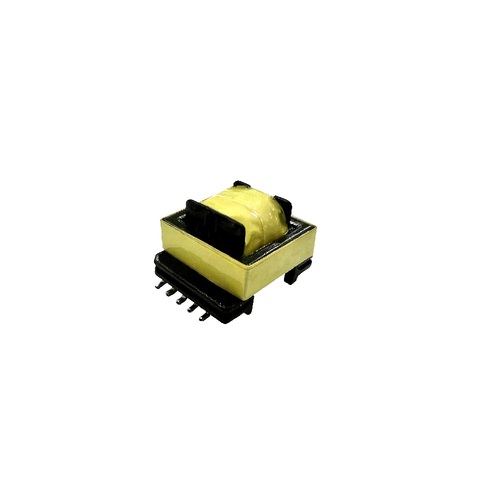

FlyBack Transformer EE

Process characteristics : square column, high/flat type, open core, large magnetic leakage, general permeability. Winding stress is large, general flow resistance, general pressure resistance.

Feature

• 6-60 VDC input voltage
• Secondary voltages of 12, 20 ,75 ,100 and 120V
• frequency 40-500kHz
• Operating Temperature :  -40°C to +125°C
• Isolation voltage : Up to 3000VAC

Application

• Industrial & medical power supplies
• Isolated auxiliary/housekeeping power supplies
• Isolated DC/DC supplies
• Home automation
• Telecom

Size

EE05、EE08、EE10、*EE13、*EE16、EE19、EE20、EE22、EE25、EE35、EE40 (* H、*V )( *DIP、*SMD)
