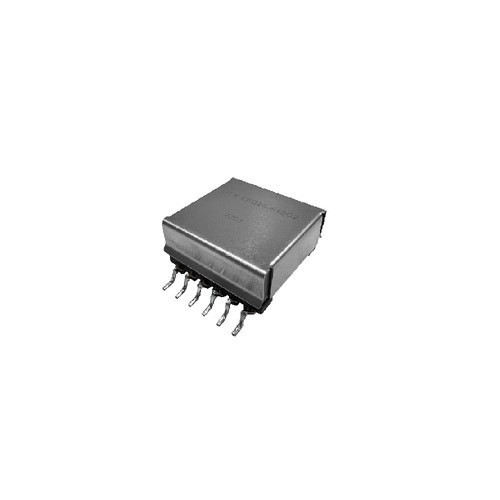

Isolation Transformer EFD

Process characteristics : elliptical column, thin type, open core, large magnetic leakage, general permeability. Winding stress is general, high flow resistance, general pressure resistance

Feature

• 4.75-85 VDC input voltage
• Secondary voltages of 5, 12, 15 and 24V
• frequency 40-500kHz
• Operating Temperature: -40°C to +125°C
• Isolation voltage: Up to 2000VAC

Application

• Isolated serial communications data interfaces
• Automation and control systems
• Multipoint data transmission systems
• Isolated current loops for process control
• Programmable Logic Controllers (PLCs)

Size

EFD10、EFD15、*EFD20、*EFD25 (*H )( *DIP、*SMD)
