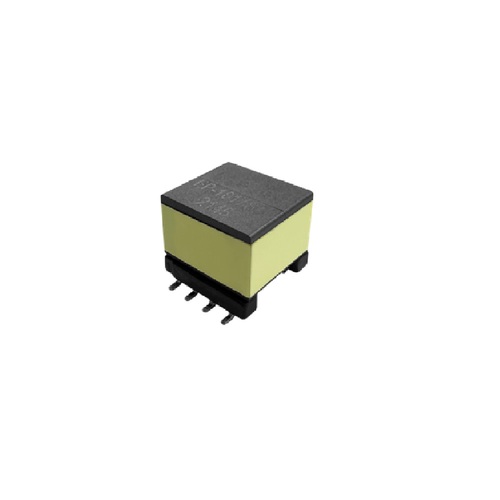

Isolation Transformer EP

Process characteristics : cylindrical, boxy, semi-open core, general magnetic leakage, good permeability. Winding stress is general, high flow resistance, general pressure resistance.


Feature

• 18-42 VDC input voltage
• Secondary voltages of 3, 5, 10, 12, 24
• frequency 40-500kHz
• Operating Temperature : -40°C to +125°C
• Isolation voltage : Up to 2000VAC

Application

• Industrial & medical power supplies
• Isolated auxiliary/housekeeping power supplies
• Home automation
• Telecom
• Portable instrumentation
• Field transmitters and other sensors
• Power over Ethernet
• Programmable Logic Controllers (PLCs)
• RS-XXX isolated serial communications data interfaces
• Multipoint data transmission systems
• Isolated serial communications data interfaces
• Isolated current loops for process control

Size

EP06、*EP07、EP10、*EP13、EP17(* H )( DIP、*SMD)
