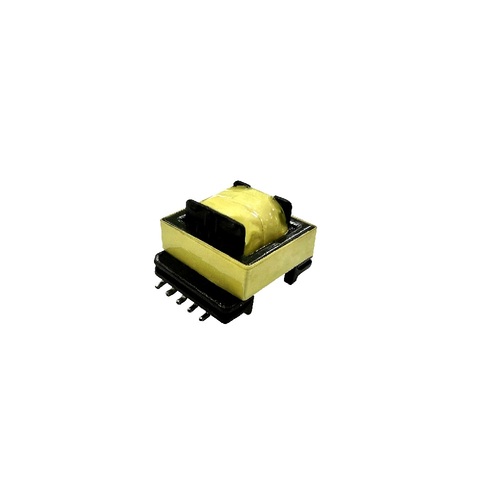

Push-Pull Transformer EE

Process characteristics : square column, high/flat type, open core, large magnetic leakage, general permeability. Winding stress is large, general flow resistance, general pressure resistance.

Feature

• 5-15 VDC input voltage
• Secondary voltages of 5, 20V
• Switching frequency 250-500kHz
• Operating Temperature :  -40°C to +125°C
• Isolation voltage :  Up to 1500VAC

Application

• Isolated serial communications data interfaces
• Industrial & medical power supplies

Size

EE05、EE08、EE10、*EE13、*EE16、EE19、EE20、EE22、EE25、EE35、EE40 (* H、*V )( *DIP、*SMD)
