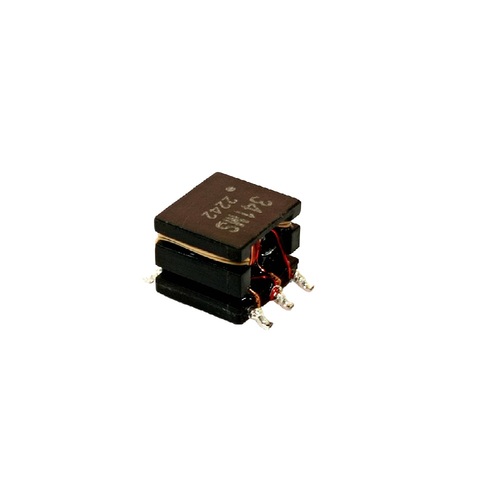

Push-Pull Transformer Toroidal

Process characteristics : closed loop, closed core, small magnetic leakage, high permeability. Winding stress is general, flow resistance is general, pressure resistance is general.

Feature

• 3.3、5V、12Vand 24V VDC input voltage
• Secondary voltages of 3.3, 5, 12 and 24V
• Switching frequency 250-650kHz
• Operating Temperature :  -40°C to +125°C
• Isolation voltage :  Up to 2500VAC

Application

• Industrial & medical power supplies
• Smart Grid power supplies
• Automation and control systems
• drive control
• Isolated serial communications data interfaces
• PLC analog and digital I/O modules
• AC motor drives
• Protection relays and IEDs

Size

Toroidal (* H、*V )( *SMD)
