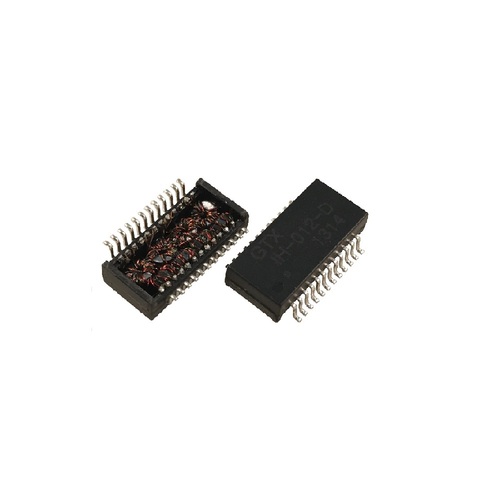

Traditional Lan Transformer -Toroidal

Process characteristics : Closed loop, closed circuit of iron core, small magnetic leakage, high permeability. Winding stress is general, flow resistance is general, pressure resistance is general.

Feature

• IEEE802.3an
• IEEE802.3af
• IEEE802.3at
• IEEE802.3bt Compliant Options

Application

• 10/100BASE-T Transformer with PoE or PoE+ or PoE++
• 1GBASE-T Transformer with PoE or PoE+ or PoE++
• 2.5/5GBASE-T Transformer with PoE or PoE+ or PoE++
• 10GGigabit Dual Port Transformer with PoE or PoE+
• ISDN

Size

Toroidal Transformers (* H、*V )( *IC、*SMD)
