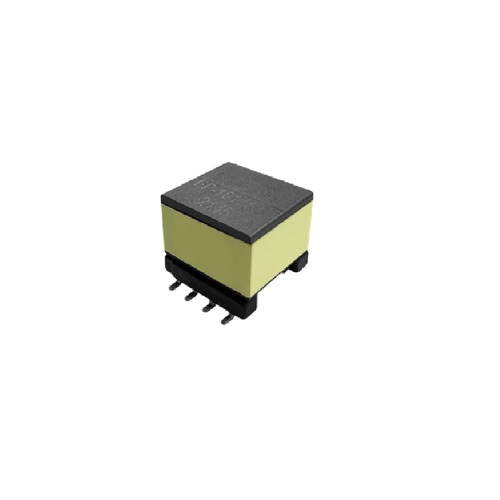

Push-Pull Transformer EP

Process characteristics : cylindrical, boxy, semi-open core, general magnetic leakage, good permeability. Winding stress is general, high flow resistance, general pressure resistance.

Feature

• 3-36 VDC input voltage
• Secondary voltages of 3, 3.3, 5, 24 and 36V
• Switching frequency 40-250kHz
• Operating Temperature :  -40°C to +125°C
• Isolation voltage :  Up to 3000VAC

Application

• Isolated serial communications data interfaces
• PLC supply isolation
• Automation and control systems
• Industrial & medical power supplies
• Robotics and power meter data interface

Size

EP06、*EP07、EP10、*EP13、EP17(* H )( DIP、*SMD)
