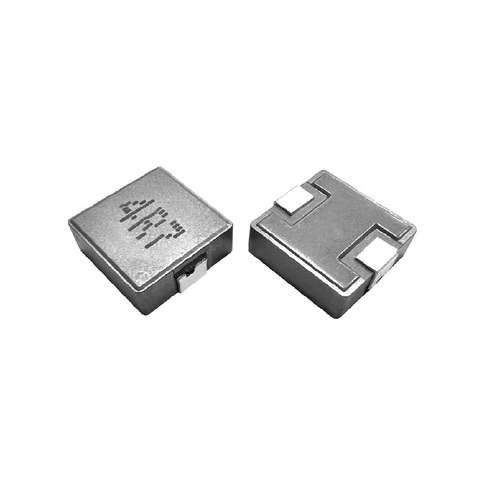

GSTD
High Current Molded Inductor
Power inductor
Power inductor
Code POWER_GSTD
CTR 1869
| Description | • High performance (Isat) realized by metal dust core. • Low loss realized with low DCR • Capable of corresponding high frequency (1MHz) • 100% lead (Pb) free meet RoHS standard • DC/DC converter for CPU in Notebook PC |
| Size | 2.5 x 2.0 x 1.2 ~ 13.5 x 12.8 x 6.3 mm |
| Inductance | 0.1 ~ 100.0 uH |
| DCR | 0.47 ~282.0 m Ohm |
| Isat | 2.2~120.0 A |
| IDC/Irms | Irms : 1.2~60.0A |
| Application | • Automotive Application • Security • SSD / HDD / NAS • Game Console • Notebook / Ultra Book • 5G / 6G communications • USB • AI HPC (High-performance computing) |
| Description | • AEC-Q200 Grade 0 (-55°C to +150°C) • High performance (Isat) realized by metal dust core. • Low loss realized with low DCR • Capable of corresponing high frequency • 100% lead (Pb) free meet RoHS standard |
| Size | 4.4 x 4.2 x 1.8 ~11.0 x 10.0 x 3.8 mm |
| Inductance | 0.22 ~ 22.0 uH |
| DCR | 1.0 ~ 282.0 m Ohm |
| Isat | 2.3 ~ 60.0 A |
| IDC/Irms | Irms : 1.8 ~ 35.0 A |
| Application | • In-Vehicle Domain Control Systems (ZCU, ECU) • Vehicle Power Management Systems (BMS, Battery Management Unit Mainboard BMU, On-Board Charger OBC) • In-Vehicle Devices (Navigation System, Audio System) • AEC-Q200 Grade 0 (-55°C to +150°C) |
